Cisco Asr 1006 Slot Numbering
Cisco Asr 1006 Slot Numbering Average ratng: 3,6/5 8019 votes

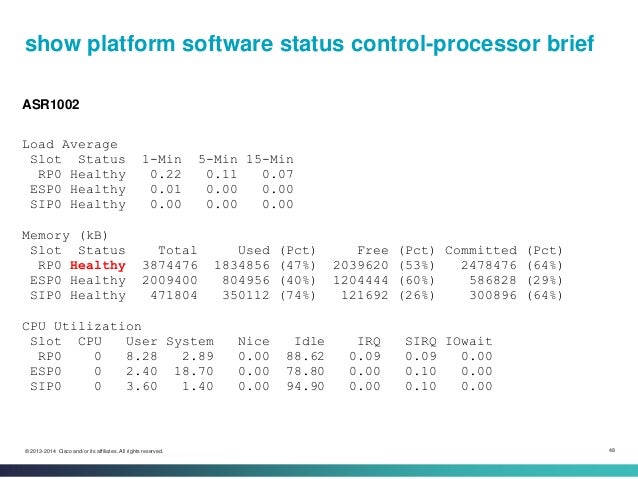

Hi everyone, I ASR-1006 with a RP in an unknown state: IR1#sh inventory NAME: 'Chassis', DESCR: 'Cisco ASR1006 Chassis' PID: ASR1006, VID: V02, SN: FOX. The cable-management brackets for the Cisco ASR 1006 Router contain 5 independent cable-management “U” type features with four screws and provides cable dressing of each card module slots. For Cisco ASR 1000 SIPs, these brackets work in tandem with shared port adapter product feature cable-management device to allow installation and removal.
- Cisco ASR 1006 Router Slot Numbering The Cisco ASR 1006 Router contains three Cisco ASR 1000 Series SPA Interfaces (SIPs) that support four subslots for the installation of SPAs. Shows the Cisco ASR 1006 Router SPA subslot location.
- The Cisco ASR 1013 Router (24-slot, 13 rack units 13RU) and the Cisco ASR 1006 Router (12-slot, 6RU) are hardware-redundant (2 ESP and 2 route-processor slots) chassis; the Cisco ASR 1004 router is an 8-slot, 4RU chassis with one ESP and one route-processor slot; the Cisco ASR 1002-X is a 3-slot, 2RU.
- The Cisco ASR 1006-X Router targets medium and high-end enterprises with up to 100 Gbps total system bandwidth in a 6-rack-unit (6RU) form factor. The Cisco ASR 1006-X is a highly flexible router that is ideal as a WAN aggregation or Internet edge device.
Cisco Asr 1006 Slot Numbering Kit
Description
Cisco Asr 1006 Datasheet
ASR 1006-X Specification | |
| Dimension | Height: 10.47 in. (265.9 mm) Width: 17.2 in. (437.4 mm) Depth: 18.15 in. (461.0 mm) |
| Default memory | 8-GB DRAM RP2 8-GB DRAM RP3 |
| Number of SIPs or Ethernet line cards supported | 2 |
| Shared port adapters | 8 SPA slots |
| Ethernet port adapters | 4 EPA slots |
| Cisco ASR 1000 Series ESP | 2 ESP slots |
| Route processor | 2 route-processor slots |
| Redundancy | Hardware: Yes |
| Built-in Gigabit Ethernet ports | 0 |
| Built-in 10 Gigabit Ethernet port | No |
| Network interface module | No |
| ESP support | Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) |
| ESP bandwidth | 40 to 100 Gbps |
| ESP memory | Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40): 8-GB DRAMCisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAM |
| SIPs and Ethernet line cards | Supports Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), Cisco ASR1000 Series MIP 100-Gbps Carrier Card (ASR1000-MIP100), and ASR 1000 Fixed Ethernet Line Card; two 10 GE + twenty 1 GE line cards (ASR1000-2T+20X1GE); and six 10 GE line cards (ASR1000-6TGE) |
| Embedded hardware-based encryption | Yes: On Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11-Gbps crypto support throughput and Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput |
| Minimum Cisco IOS XE Software release | Cisco IOS XE Software Release 3.16.0 |
| Rack-mounting | Yes: 19-inch |
| Wall-mounting | No |
| External USB flash memory | 1-GB USB flash-memory support |
| Redundant power supply | Yes: Dual power supplies by default, expandable up to a total of six, depending on configuration and redundancy preferences; option of either 1100W AC or 950W DC Note: A mix of AC and DC power supplies is not supported. |
| Power input | Worldwide ranging AC input range (85 to 264 VAC) Worldwide ranging DC (-40 to -72; -48V nominal) |
| Power consumption | ● Maximum (DC): 4600W ● Maximum (AC): 4500W |
| Airflow | Front-to-back |
| Operating temperature (nominal) | Same as for Cisco ASR 1001-X |
| Operating temperature (short-term) | Same as for Cisco ASR 1001-X |
| Operating humidity (nominal) (relative humidity) | Same as for Cisco ASR 1001-X |
| Operating humidity (short-term) | Same as for Cisco ASR 1001-X |
| Storage temperature | Same as for Cisco ASR 1001-X |
| Storage humidity (relative humidity) | Same as for Cisco ASR 1001-X |
| Operating altitude | Same as for Cisco ASR 1001-X |
| Network Equipment Building Standards (NEBS) | GR-1089 and GR-63 |
| EMC standards | Same as for Cisco ASR 1001-X |
| Safety Standard | UL60950-1 CSA C22.2 No. 60950-1-03 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 |
